Product Details

Basic Info.

Model NO.: JHR-YY0024

Connection Form: Welded Connection

Member: Steel Column

Type of Steel For Building Structure: H-Section Steel

Carbon Structural Steel: Q355

Residential Wall Structure: Wallboard

Application: Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Frame Part, Steel Walkway and Floor, Steel Structure Bridge

Product Name: Steel Structure Poultry House

Usage: Poultry Farm

Area: 20000m2

Steel Column: Box Column

Grade: Q355, Q235

Surface Treatment: Shot Blasting& 2 Layer of Anti-Rust Paint

Beam: H Sectional Beam

Span: Multi Span

Column Distance: 8m

Roof: PU Sandwich Panel

Wall: PU Sandwich Panel

Door: Insdustrial Folding up Door

Window: Alu Alloy Window

Design Life: 50 Years

Design Load: Heavy Snow, Big Wind, Big Earthquake

Transport Package: Pallet & Standard Package by Container/ Bulk Ship

Specification: Customized

Origin : China, Qingdao

HS Code: 7308900000

Production Capacity: 100000ton/Year


Product Overview

House ParameterItemDetails
Product nameCheap steel structure building automatic equipment system broiler poultry shed chicken house
ApplicationBroiler house, layer house, breeding house, brood house etc
Frame typePortal frame or steel roof truss
Main steel frameH beam or square pipe with anti-rust paint or hot dip galvanized
Roof &cladding75mm Glass wool sandwich panel composite on site
DoorSpecial insulation door for poultry house
WindowPlastic steel sliding window
Brick wall300mm,500mm,800mm

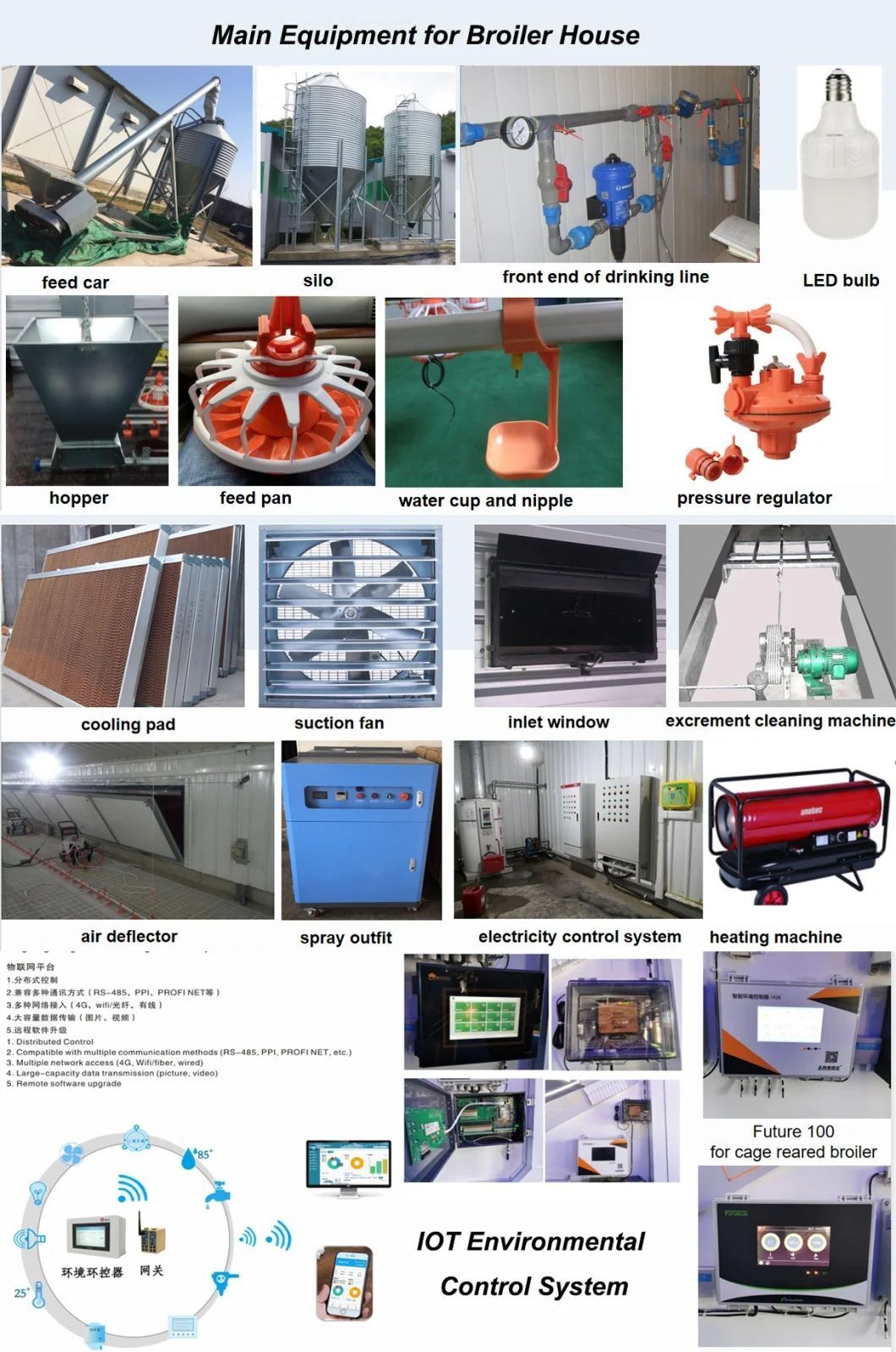

Equipment ConfigurationMain feeding line systemIncluding silo, feed conveyor,drive system,sensor ,main drop,main feed line and accessories
Feed pan systemIncluding hopper,drive system,sensor,delivery system with feedpan,winch and accessories
Nipple drinking systemIncluding medicator,waterline system,drinking system,winch and itsaccessories
Curtain system(For open type house)Including curtain,rodent-resistant net ,winch and accessories
Electric control systemMainly including environmental handler, control box, cooling pad with water pump, air deflector, spraying system, suction fan, air inlet window. To lower the temperature and ventilation which ensure the chicken respiration
Lighting systemMainly including LED bulb and waterproof wire. To provide simulated natural light, more suitable for chicken growth
Heating systemMainly refer to heating equipment. Ensure the temperature needed by chickens in the growing period

Pre-Fab Chicken Farm Breeder H2.jpg

Pre-Fab Chicken Farm Breeder H3.jpg

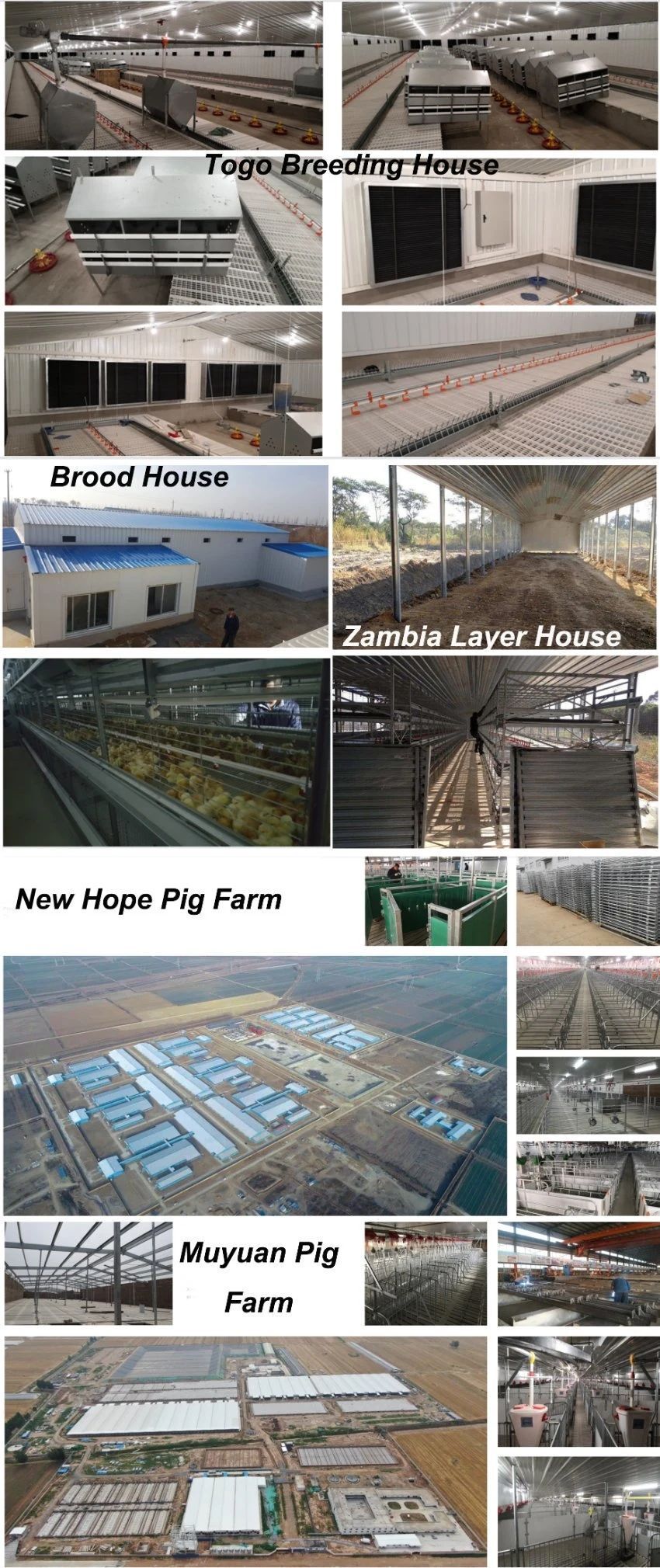

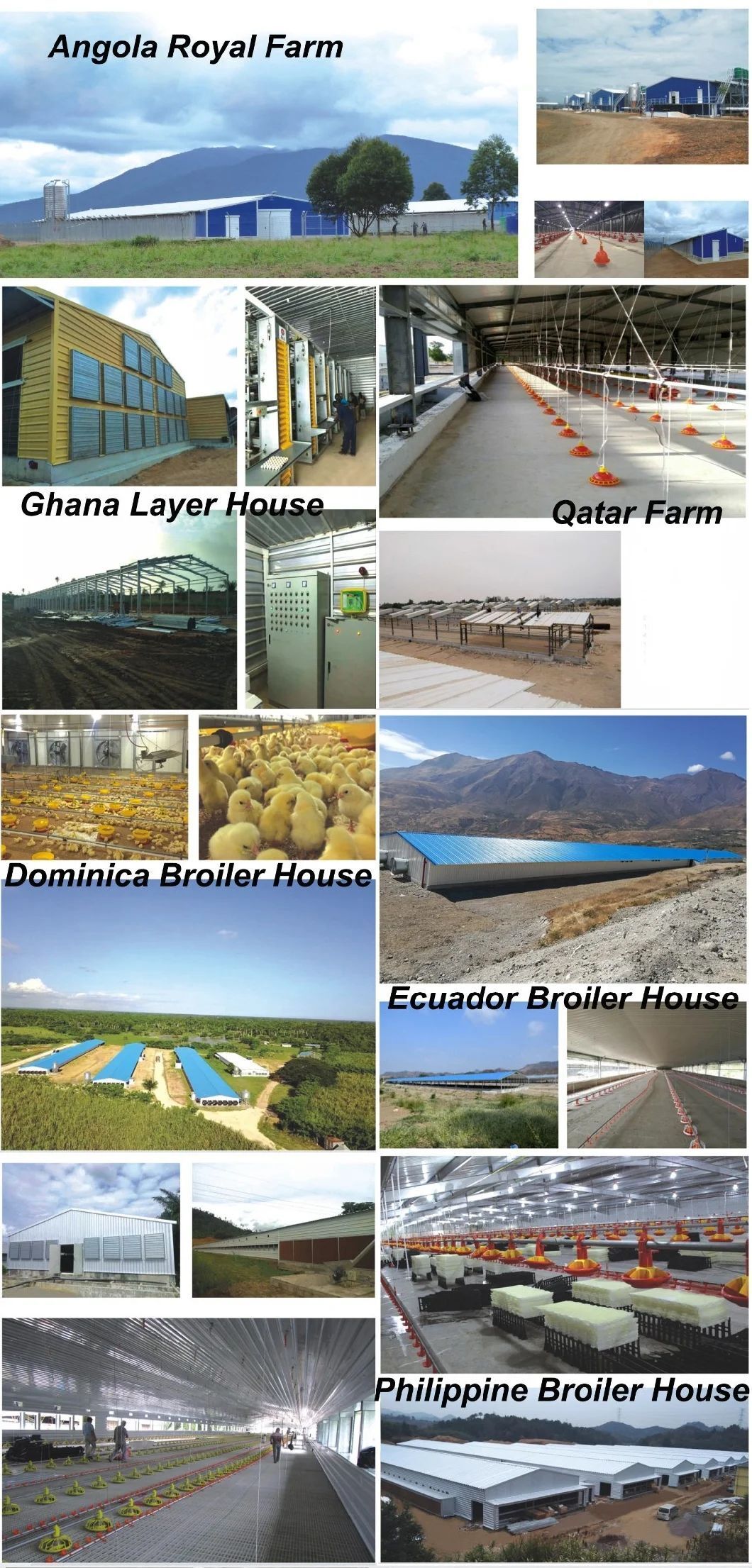

Project Exhibition

Pre-Fab Chicken Farm Breeder H4.jpg

Pre-Fab Chicken Farm Breeder H5.jpg



Our Service:

Professional design and engineering team:
Full solution for site camp design. We could make the design for whole camp as per your requirement.



Procurement and Manufacture for all material for prefabricated building:
We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO/CE/SGS standard, to make sure the fabrication works with high technology.



Site management & Installation supervision:
We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK
Packing & Delivery:
Inspection: 50% inline inspection and 100% full final inspection, make sure all output w/o any mistake
Packing: per customer's requirements or per product sizes, full protection packing
Shipping: per customer's requirements or per container sizes

Need Quotation?

Our excellent design team will design the steel structure workshop warehouse for you. If you give the following information, we will give you an satisfactory drawing.

Submit

FAQ

1. How to buy your idea products?
A: TT and L/C are acceptable and TT will be more appreciated. 50% deposit before producing, balance before loading by TT.

2.What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 15 to 30 days.

3. How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.

4.How to install after the goods arriving destination?
A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
